Hyundai Elantra & Sonata Ignition Repair in Fort Worth: Damaged Cylinders and Missing Immobilizers

There are two very different Hyundai ignition calls we take in Fort Worth, and they come from the same generation of cars.

The first is ordinary wear: an Elantra with 140,000 miles where the key has to be jiggled, wiggled, and sworn at before it turns, until one morning it does not turn at all. The second is damage: a Sonata whose ignition was physically wrecked in an attempted theft, leaving a column that will not accept a key at all.

Both are repairable on-site. As of July 2026, Hyundai ignition work in Fort Worth is quoted by job after diagnosis, with key line items running $130 – $290 depending on key type. Call or text 817-674-2304 and describe what the key does when you turn it.

Quick Answer: Can My Hyundai Ignition Be Repaired or Does It Need Replacing?

Both are options and the choice depends on what failed.

• Worn wafers, key turns hard or sticks: frequently a rebuild of the existing cylinder. Your original keys keep working.
• Cylinder physically damaged or forced: replacement of the lock, then keys cut and programmed to match.
• Key turns freely but nothing happens: that is usually not the lock at all — it is the ignition switch behind it, or an electrical fault.
• Key turns and the engine cranks but will not run: immobilizer or fuel/spark. Different problem entirely.

Getting this sorted before parts get ordered is most of the value of the phone call.

What It Costs in Fort Worth

Ignition work is quoted per job because the labor swings with the failure mode. Key prices below come from the published ranges on our car key replacement cost page.

Hyundai Elantra / Sonata job	Typical Fort Worth range	Notes
Standard transponder chip key	$130 – $220	Turn-key Elantra and Sonata with an immobilizer
Basic mechanical key (no chip)	$50 – $100	Non-immobilizer cars — see the section below
Remote head key	$160 – $260	Transponder plus integrated remote buttons
Flip key	$170 – $290	Folding blade plus remote
Smart proximity fob	$220 – $450	Push-button-start Elantra and Sonata
All-keys-lost surcharge	+$50 – $200	Decode the lock with no working key
Ignition cylinder rebuild or replacement	Quoted on the call	After diagnosis

As of July 2026 these are typical Fort Worth ranges rather than a guaranteed quote. Ignition labor depends on the specific column and what condition it is in when we arrive.

The Immobilizer Gap in 2011–2021 Hyundais

This is the part of the story most Elantra and Sonata owners already half-know.

A range of Hyundai and Kia vehicles built roughly between 2011 and 2021 — specifically turn-key models, not push-button-start models — were sold in the United States without a factory engine immobilizer. Push-button-start trims had one. The base turn-key trims frequently did not.

That gap became widely publicized, and the resulting theft wave was measurable. The Insurance Institute for Highway Safety and the Highway Loss Data Institute documented sharply elevated whole-vehicle theft claim frequencies for the affected Hyundai and Kia model years relative to other makes of the same era — a pattern that only makes sense as a consequence of the missing immobilizer.

Hyundai's response, beginning in early 2023, was a free anti-theft software upgrade for eligible vehicles, distributed through dealers and publicized alongside NHTSA, plus steering-wheel locks made available to affected owners. If you own one of these cars and have never had the upgrade applied, that is worth a call to a Hyundai dealer — it is not something a locksmith performs.

Where a locksmith fits into that story

Two places, both common in Fort Worth right now:

Ignition damage repair. A forced ignition leaves a column that will not accept a key. Repairing or replacing that lock and cutting keys to match it is exactly what we do. It is one of the most frequent ignition jobs on these two models.

Key and immobilizer work on the cars that do have one. Push-button trims and later model years have a functioning immobilizer, and everything normal about transponder and smart-key programming applies to them.

What a locksmith cannot do is retrofit a factory immobilizer into a car that never had one. If a shop offers to, ask a lot of questions. The manufacturer's software upgrade and physical deterrents are the sanctioned path.

How to Tell Which Hyundai You Have

Does your steering column have a key cylinder or a START button? A START button means the car shipped with a proximity system and an immobilizer. A turn-key column on a 2011–2021 Elantra or Sonata means you should check whether the software upgrade has been applied.

Look at the key itself. A plain metal key with no plastic head and no chip suggests a non-immobilizer car. A key with a thick plastic head housing a transponder chip means the car authenticates.

Check by VIN. Hyundai's owner resources and any Hyundai dealer can confirm what your specific VIN shipped with and whether the anti-theft upgrade has been applied to it.

Common Ignition Failures on These Cars

The key turns hard, then stops turning

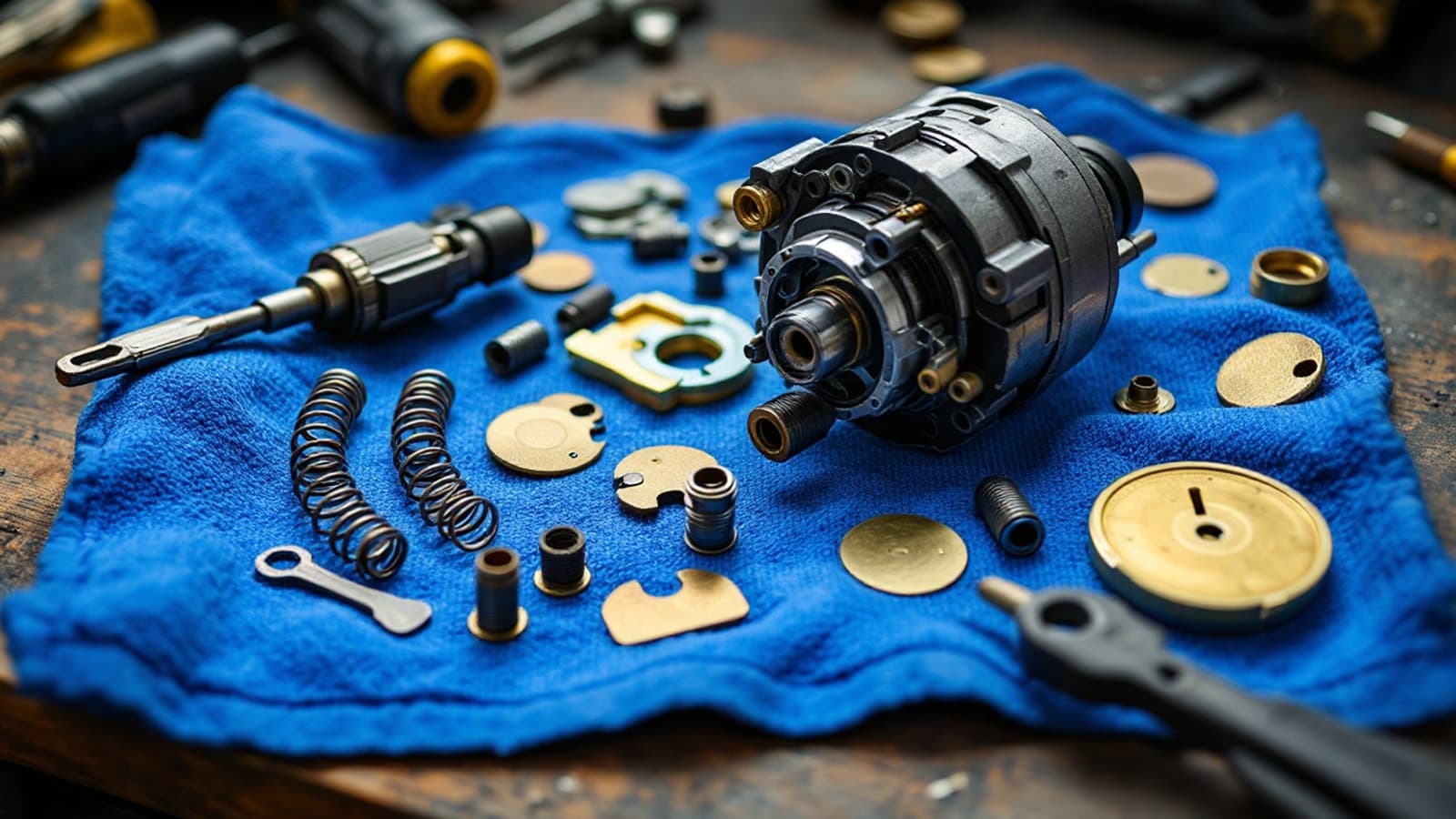

Classic wafer wear. Years of a heavy keyring hanging off the ignition accelerate it dramatically. Often rebuildable, keeping your existing keys valid.

The key goes in but will not rotate at all

Check the obvious first: is the steering wheel locked against the column? Turn the wheel firmly left and right while gently turning the key — a bound steering lock mimics a dead ignition perfectly and costs nothing to rule out. Also verify the shifter is fully in Park.

The key turns and everything goes dead

That points at the electrical ignition switch behind the lock cylinder rather than the lock itself — two different parts that fail in two different ways.

The key broke off in the ignition

Do not dig at it. Extraction is a real procedure with real tools, and pushing the broken half deeper turns a simple job into a cylinder replacement. Our broken key extraction guide covers it, and the general ignition case is on our ignition repair page.

It cranks but will not fire

That is not the lock. If your car has an immobilizer, a security light behavior check comes next; if not, it is fuel, spark, or a sensor and belongs with a mechanic.

What a Mobile Ignition Visit Involves

Ownership verification first. Registration or title in your name plus matching photo ID. Texas locksmith work is regulated under the Texas Department of Public Safety Private Security Program, established in Chapter 1702 of the Texas Occupations Code. On a car with a forced ignition, expect this to be checked carefully — that is the correct behavior, and it protects you.

Diagnosis. Whether the fault is the cylinder, the switch, the steering lock, or the credential.

Repair or replacement. Rebuild where the cylinder is serviceable; replace where it is not.

Keys cut and, where applicable, programmed. On an immobilizer-equipped Hyundai, new keys are registered through the diagnostic port after the mechanical work is done.

Verification. Multiple key cycles, accessory, on, and start positions, and confirmation that the key comes out cleanly in Park.

Why Immobilizers Matter — The Numbers

The Hyundai story is, in a sense, an unintended controlled experiment in what immobilizers are worth.

The regulatory baseline is FMVSS 114 — Theft Protection and Rollaway Prevention, administered by the National Highway Traffic Safety Administration.

Per FMVSS No. 114, each vehicle must have a starting system that, whenever the key is removed from the starting system, prevents the normal activation of the vehicle's engine or motor and prevents either steering, or forward self-mobility, of the vehicle, or both. — NHTSA, Federal Motor Vehicle Safety Standard No. 114

Note what the standard requires and what it does not: it mandates a starting system that resists activation without the key, but the steering-lock-and-key-cylinder design that many turn-key Hyundais used was engineered to satisfy it without an electronic immobilizer. Since 1991 the standard has also required that vehicles with an automatic transmission having a Park position prevent key removal unless the transmission is locked in Park (NHTSA / Federal Register, FMVSS No. 114).

Nationally, theft has fallen sharply as immobilizer coverage has become near-universal on newer vehicles. The National Insurance Crime Bureau reports U.S. vehicle thefts fell 23.2% from 2024 to 2025 — 850,708 down to 659,880, per the FBI-managed National Crime Information Center — the lowest levels in decades.

Access to the data that lets an independent technician program an immobilizer key is itself controlled. It runs through the National Automotive Service Task Force's Vehicle Security Professional registry and its Secure Data Release Model — founded in 2008, now more than 9,000 NASTF participants, with credentialing that requires business registration, a locksmith license, and a criminal background check, and a typical approval window of three to ten days. Trade certification runs through ALOA, and Texas licenses locksmith companies and technicians through the Texas DPS Private Security Program under Chapter 1702.

Used-car note, and it matters on these models because many have changed hands recently: the Texas Department of Motor Vehicles requires titling in the buyer's name within 30 days of the sale date, with penalties for delinquent transfers. A signed title plus the seller's registration satisfies an appointment in the meantime.

Mobile Hyundai Service Across Fort Worth

We come to Elantra and Sonata owners throughout Fort Worth — the north side and Stockyards, downtown and the medical district, TCU and the near south side, Wedgwood and the southwest, Alliance and the far north — plus Arlington, Keller, North Richland Hills, Hurst, Bedford, Euless, and Haltom City. Full list on our service areas page. Hyundai key programming specifics for the larger models are in our Hyundai Palisade and Santa Fe immobilizer guide.

Frequently Asked Questions

My Hyundai Elantra key won't turn in the ignition. What is wrong?

Most often a worn lock cylinder or a bound steering lock. Before assuming the worst, turn the steering wheel firmly left and right while gently turning the key, and confirm the shifter is fully in Park — a bound column mimics a failed ignition exactly.

Can a locksmith repair a damaged Hyundai ignition?

Yes. A worn cylinder can often be rebuilt, keeping your existing keys valid, and a forced or destroyed cylinder can be replaced with new keys cut and programmed to match. Both are mobile jobs.

Do all Hyundai Elantras and Sonatas have an immobilizer?

No. A range of turn-key Hyundai and Kia models built roughly 2011 to 2021 shipped without a factory engine immobilizer, while push-button-start trims had one. Check whether your column has a key cylinder or a START button.

Can a locksmith install an immobilizer in my Hyundai?

No. Retrofitting a factory immobilizer is not a locksmith service. Hyundai's free anti-theft software upgrade, available through dealers since 2023 for eligible vehicles, is the sanctioned path along with physical deterrents.

How much is a Hyundai Elantra key in Fort Worth?

As of July 2026, $130 – $220 for a standard transponder key, $160 – $260 for a remote-head key, $170 – $290 for a flip key, and $220 – $450 for a smart proximity fob. Non-chip mechanical keys are $50 – $100.

My key broke off in the Hyundai ignition — can it be removed?

Yes, with extraction tools. Do not attempt to dig it out; pushing the broken half deeper can turn a straightforward extraction into a full cylinder replacement.

The key turns but the engine only cranks. Is that the ignition?

No. Cranking means the ignition switch is doing its job. A crank-no-start is either the immobilizer refusing authorization, on cars that have one, or a fuel, spark, or sensor problem for a mechanic.

Will a new ignition cylinder mean new keys?

Usually. When the cylinder is replaced rather than rebuilt, keys are cut to the new lock and, on immobilizer-equipped cars, programmed to the vehicle at the same visit.

Tell Us What the Key Does

The difference between a rebuild and a replacement, or between a lock problem and a switch problem, is usually clear from a thirty-second description of the symptom. Getting that right on the phone saves an unnecessary parts purchase.

Call or text 817-674-2304 with your Elantra or Sonata's year, whether the column has a key or a START button, and exactly what happens when you turn the key. We will tell you what it likely is and what it costs before dispatching. Stranded now? Route it through our 24-hour locksmith dispatch.

---

Article written by the Fortworthlocksmithexperts Automotive Locksmith Team. For mobile automotive locksmith service throughout Fort Worth and Tarrant County, contact us at 817-674-2304.
